Corba_Exception due to polling of attribute
|
|
---|---|
Hello AndyCan you send the code? I have attached the code snippet of dynamic attribute creation. Can you start the device server with DEBUG logging switched on "-v5" on the command line and send us the output at startup when the exception is thrown. I don't how to switch on "-v5" and DEBUG logging. Can you please explain, so that I can try here and send you the output. Thanks and Regards TCS-GMRT TEAM
Regards,
TCS_GMRT |
|
|
---|---|
Hi, when you start a device server without arguments it tells you the following e.g. TangoTest usage : TangoTest instance_name [-v[trace level]] [-file=<file_name> | -nodb [-dlist <device name list>] ] The -v sets the level of tracing, 5 is the highest. The output is then sent to stdout/stderr (I forgot which one). This is explained in appendix A12 on page 220 in the Tango manual (V9.1.0) Andy |
|
|
---|---|
Hi Andy I want to add one more thing, along with specifying polling of dynamic attribute, I am also setting the archive periodic event property of dynamic attribute as well. So maybe not because of polling of attribute, but may be due to specifying of archive periodic event, the above error may be coming. Thanks and Regards TCS-GMRT TEAM
Regards,
TCS_GMRT |
|
|
---|---|
Hello, As Andy said, the output of your device server when started with the option "-v5" and the source code will be very helpful to find out your problem. But could you also : - If the name of the attribute to be created is defined via property, send us the property content (Jive window dump) - Do the following select once logged in your MySQL database after a "use tango" command:
Thank's in advance Manu |
|
|
---|---|
Hello Manu/AndyTangoTest instance_name [-v[trace level]] [-file=<file_name> | -nodb [-dlist <device name list>] ] I tried as said above, but i dont have 'nodb' command installed. I also tried without no db option, still file is not getting generated. Regards tgmrt
Regards,
TCS_GMRT |
|
|
---|---|
PLEASE READ THE DOCUMENTATION! Once you done so you will see the options -file and -nodb have nothing to do with setting the logging level. If you start your device server with the instance name and -v5 as follows you should get a lot of output on the command line (see below). Redirect this output to a file and send us the file. Andy goetz@pcandy:~$ TangoTest test -v5 Entering Logging::init TANGO_LOG_PATH is /tmp/tango-goetz cmd line logging level is 5 Logging::create_log_dir(/tmp/tango-goetz/TangoTest/test) returned 0 added console target (logging level set from cmd line) Leaving Logging::init 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Connected to database 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering Util::server_already_running method 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Leaving Util::server_already_running method 1456416010 [140708167915328] DEBUG dserver/TangoTest/test calling Tango::NotifdEventSupplier::create() 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Failed to import EventChannelFactory notifd/factory/pcandy from the Tango database 1456416010 [140708167915328] DEBUG dserver/TangoTest/test calling Tango::ZmqEventSupplier::create() 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Heartbeat thread Id = 5 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Tango object singleton constructed 1456416010 [140708167915328] DEBUG dserver/TangoTest/test doc_url property for class DServer is not defined in database 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering MultiClassAttribute constructor 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering MultiClassPipe constructor 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Device name : dserver/TangoTest/test 1456416010 [140708167915328] DEBUG dserver/TangoTest/test SubDevDiag::set_associated_device() entering … 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering MultiAttribute class constructor for device dserver/TangoTest/test 1456416010 [140708167915328] DEBUG dserver/TangoTest/test 0 attribute(s) 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Leaving MultiAttribute class constructor 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering DeviceImpl::init_logger 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Entering DeviceImpl::get_logger_i 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Leaving DeviceImpl::get_logger_i 1456416010 [140708167915328] DEBUG dserver/TangoTest/test Leaving DeviceImpl::init_logger |
|
|
---|---|

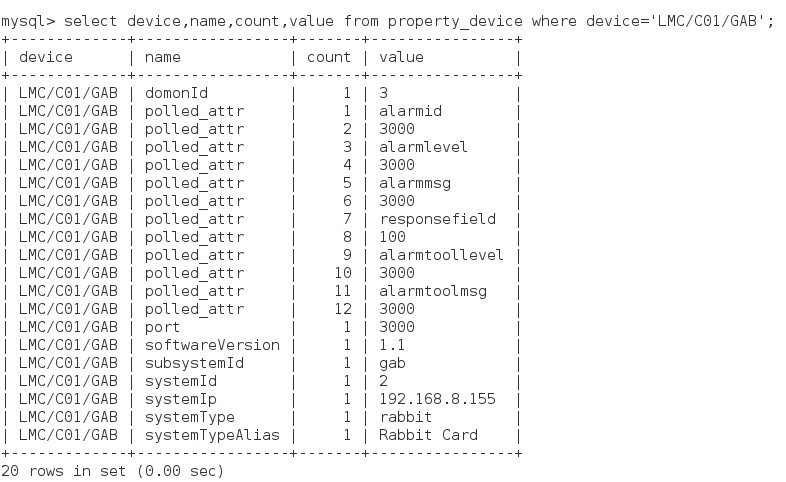

Hello Andy/Manuselect device,name,count,value from property_device where device='<your device name>' Please find the attached Property_attribute.jpg TangoTest instance_name [-v[trace level]] [-file=<file_name> | -nodb [-dlist <device name list>] ] Please find the attached test2.txt after specifying polling and archive periodic event of the attribute. Thanks and Regards TCS-GMRT TEAM
Regards,
TCS_GMRT |
|
|
---|---|
Hello, Still not able to conclude! When looking at your device server outputs, it looks like the list of attribute to be polled still contains the dynamic attributes like gab_bbfilter_ch2 and other. But the output of the select I asked you to do does not show these attributes in the value of the polled_attr property!!! Really strange. We need another info from you. In Jive in the device panel, select your database device (should be sys/database/2), then right click and start "Test Device" In the command list, select "DbGetDataForServerCache". In the Argin value box, type your full device server name and the host name on which it is running (SubSystem_DS/Gab,<your host name>). This should return a long list of strings. Could you send us this list? Regards Emmanuel |
|
|
---|---|

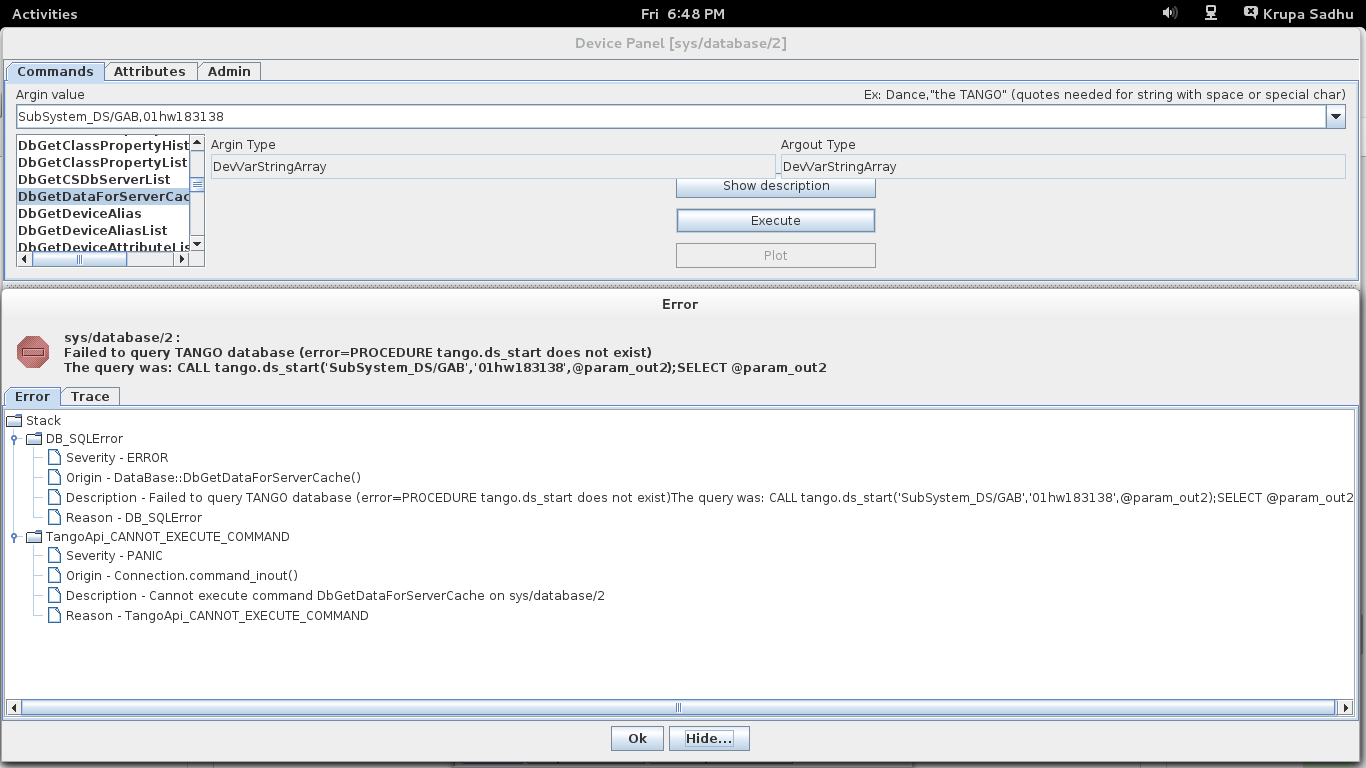

Hello Manu I tried the above step, but there is some problem in querying the tango database. Please find the attached screen-shot. Thanks and Regards TCS-GMRT TEAM
Regards,
TCS_GMRT |
|
|
---|---|
Hello, From the error message you got I have the feeling that your database is in a very strange state. In a Tango database, you should have several stored procedures. The MySQL command "show procedure status" displays these stored procedure. According to your error message, you even do not have the Tango main stored procedure named "ds_start". These stored procedures are used during a DS startup sequence. If they are not installed in the database, the DS will do a lot of small requests to the database and this takes much more time. We have first to solve this point before fixing the problem with your SubSystem_ds DS. When you have downloaded, compiled and installed Tango, you should have in your install directory a file stored_proc.sql in the folder <install_dir>/share/tango/db. With this file run the command (and type your root database password) Then restart your Tango database server. On the "Test device" panel on your database device (see my previous post), go to theattribute panel and try to read the attribute "StoredProcedureRelease". The answer should be 1.8 Then redo the command as explained in my previous post. Good luck Emmanuel |
