How to add dynamic attributes to a device class

Creating new attributes at Startup

by Sergi Rubio Manrique, srubio@cells.es, with help from R.Bourtembourg and E.Taurel.

Do you need to create more or less Attributes depending on a certain device property? Are you interested in changing the name/type/dimensions of your attributes depending on different applications?

That is common while working with Input/Output devices with a variable number of channels (PLCs, DaqBoards, Timers/Counters), when depending of the operation mode more or less scalar or spectrum attributes could be needed.

This brief HowTo implements this feature in a Tango class base on code generated by Pogo 8.

Generating your class with Pogo

As an example, we will create a Tango class named DynAttr

with three types of attributes:

1. StaticAttr: A scalar, Tango::DevShort, READ attribute
2. LongDynAttr: A scalar, Tango::DevLong, READ_WRITE attribute
3. DoubleDynAttr: A scalar, Tango::DevDouble, READ_WRITE attribute

Each device belonging to this class has one StaticAttr and a dynamic list of LongDynAttr or DoubleDynAttr attributes. This list of dynamic attributes is defined with a device property named DynAttrList

Therefore, using Pogo, we define a Tango class with three scalar attributes with the definition given above. We also create the DynAttrList property for defining dynamic attribute. This is a vector of strings with a couple of strings for each attribute. The first string is the dynamic attribute type (LongDynAttr or DoubleDynAttr) and the second string is the attribute name.

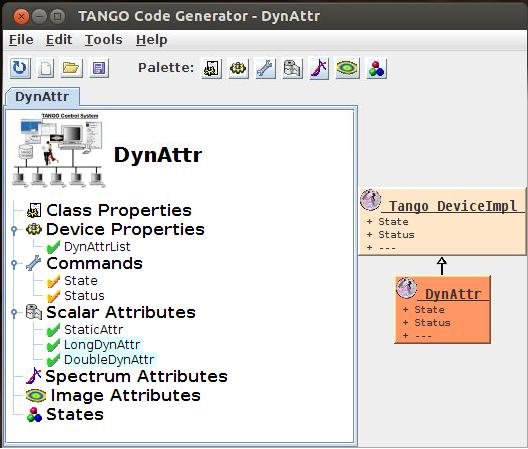

Please, note that the dynamic attributes have a light green background color on the main Pogo window

Implementing the Dynamic Attributes

Pogo 8 has been modified to help user to create Tango class with dynamic attribute(s).

Dynamic attribute registration

To register device dynamic attribute, you need to:

• call the Tango::DeviceImpl::add_attribute() method for each device dynamic attribute.
• Create the data used with the attribute (for the Attribute::set_value() method

Pogo generates method(s) named DynAttr::add_<Dyn attr class name>_dynamic_attribute(string att_name) which do this job for you. You have to call these methods according to your needs in another Pogo generated method named DynAttr::add_dynamic_attributes() which is executed at device creation time. In our example, in this method we have to:

• analyze the content of the device DynAttrList property and create the necessary attributes using the helper method also generated by Pogo

The code of the DynAttr::add_dynamic_attributes() method looks like

void DynAttr::add_dynamic_attributes()
{
    //	Example to add dynamic attribute:
    //	add_LongDynAttr_dynamic_attribute("MyAttribute");
    //	add_DoubleDynAttr_dynamic_attribute("MyAttribute");

    /*----- PROTECTED REGION ID(DynAttr::add_dynamic_attributes) ENABLED START -----*/

    if (dynAttrList.empty() == false)
    {
	if ((dynAttrList.size() % 2) != 0)
	{
// Throw exception
	}

	for (unsigned int i = 0;i < dynAttrList.size();i = i + 2)
	{
	    if (dynAttrList[i] == "LongDynAttr")
	    {
		add_LongDynAttr_dynamic_attribute(dynAttrList[i + 1]);
	    }
	    else if (dynAttrList[i] == "DoubleDynAttr")
	    {
		add_DoubleDynamicAttr_dynamic_attribute(dynAttrList[i + 1]);
	    }
	    else
	    {
// Throw exception
	    }
	}
    }

    /*----- PROTECTED REGION END -----*/	//	DynAttr::add_dynamic_attributes

The code to throw exception has been removed.

Note that the data associated with all LongDynAttr dynamic attributes  are initialized to 0 and the data associated to all DoubleDynAttr dynamic attributes are initialized with 0.0

The definition of the DoubleDynAttr attribute is simply to return when read, the last value which has been written. The code for the DoubleDynAttr reading/writing is the following

void DynAttr::read_DoubleDynAttr(Tango::Attribute &attr)
{
    DEBUG_STREAM << "DynAttr::read_DoubleDynAttr(Tango::Attribute &attr) entering... " << endl;
    Tango::DevDouble *att_value = get_DoubleDynAttr_data_ptr(attr.get_name());

    /*----- PROTECTED REGION ID(DynAttr::read_DoubleDynAttr) ENABLED START -----*/

    //	Set the attribute value
    attr.set_value(att_value);

    /*----- PROTECTED REGION END -----*/	//	DynAttr::read_DoubleDynAttr
}

void DynAttr::write_DoubleDynAttr(Tango::WAttribute &attr)
{
    DEBUG_STREAM << "DynAttr::write_DoubleDynAttr(Tango::Attribute &attr) entering... " << endl;

    //	Retrieve write value
    Tango::DevDouble	w_val;
    attr.get_write_value(w_val);

    /*----- PROTECTED REGION ID(DynAttr::write_DoubleDynAttr) ENABLED START -----*/

    Tango::DevDouble *att_value = get_DoubleDynAttr_data_ptr(attr.get_name());
    *att_value = w_val;

    /*----- PROTECTED REGION END -----*/	//	DynAttr::write_DoubleDynAttr
}

The code of the read method in its Pogo generated part retrieves a pointer to the data associated with this attribute with the helper method named DynAttr::get_<Dyn attr class name>_data_ptr(sting att_name). The user code simply pass this pointer  to the Tango Attribute::set_value() method.

The user code of the write method also uses the Pogo generated helper method to get the attribute data pointer and set this data to the value sent by the caller.

The definition of the LongDynAttr is a bit more sophisticated. For one device of this Tango class, we have several dynamic attributes of this LongDynAttr type. According to which attribute is read or written, we have to call different method accessing the hardware.

The code for reading/writing the LongDynAttr attribute is given below

void DynAttr::read_LongDynAttr(Tango::Attribute &attr)
{
    DEBUG_STREAM << "DynAttr::read_LongDynAttr(Tango::Attribute &attr) entering... " << endl;
    Tango::DevLong *att_value = get_LongDynAttr_data_ptr(attr.get_name());

    /*----- PROTECTED REGION ID(DynAttr::read_LongDynAttr) ENABLED START -----*/

    string &att_name = attr.get_name();
    if (att_name == dynAttrList[1])
	*att_value = read_hardware_channel1();  // Access hardware for channel 1 which is the first attribute in the list
    else if (att_name == dynAttrList[3])
	*att_value = read_hardware_channel2();  // Access hardware for channel 2 which is the second attribute in the list
    else
    {
// Throw exception
    }

    //	Set the attribute value
    attr.set_value(att_value);

    /*----- PROTECTED REGION END -----*/	//	DynAttr::read_LongDynAttr
}

void DynAttr::write_LongDynAttr(Tango::WAttribute &attr)
{
    DEBUG_STREAM << "DynAttr::write_LongDynAttr(Tango::Attribute &attr) entering... " << endl;

    //	Retrieve write value
    Tango::DevLong	w_val;
    attr.get_write_value(w_val);

    /*----- PROTECTED REGION ID(DynAttr::write_LongDynAttr) ENABLED START -----*/

    string &att_name = attr.get_name();
    if (att_name == dynAttrList[1])
	write_hardware_channel1(w_val); // Access hardware for channel 1 which is the first attribute in the list
    else if (att_name == dynAttrList[3])
	write_hardware_channel2(w_val); // Access hardware for channel 2 which is the second attribute in the list
    else
    {
// Throw exception
    }

    /*----- PROTECTED REGION END -----*/	//	DynAttr::write_LongDynAttr
}

 Running the server

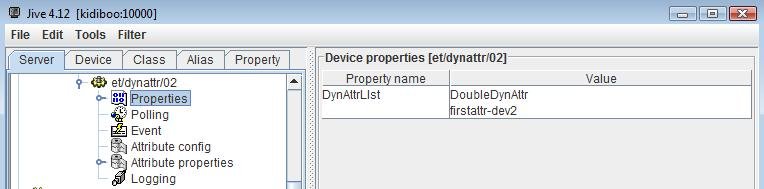

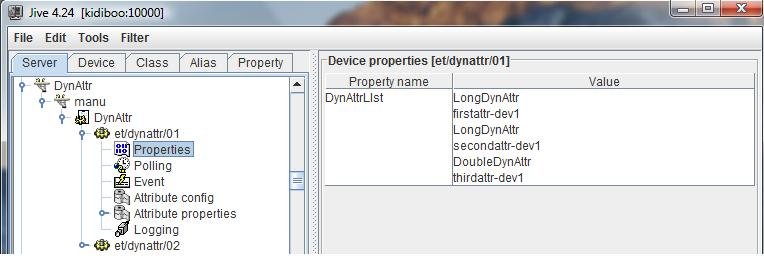

A Tango device server process hosting this DynAttr class has been defined in the database with two device. The dynamic attributes for these two devices are

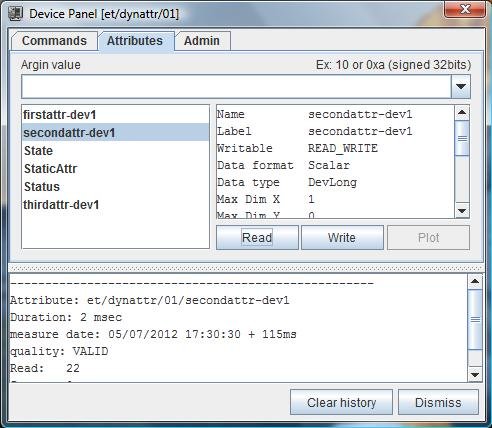

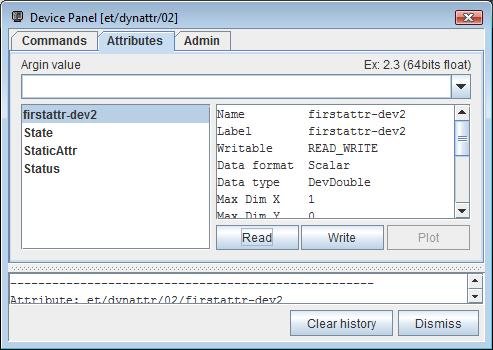

As shown by the Pogo screen-shot in the beginning of this HowTo, the Tango class also defines a static attribute for each device named StaticAttr. Running the device server and opening TestDevice panels on each device displays device attribute list:

This method fully supports restarting device(s) or server using the device server process admin device.

Conclusion

Pogo 8 simplifies a lot the code needed to write Tango class with dynamic attributes. Restarting device(s) from the admin device is fully supported.
